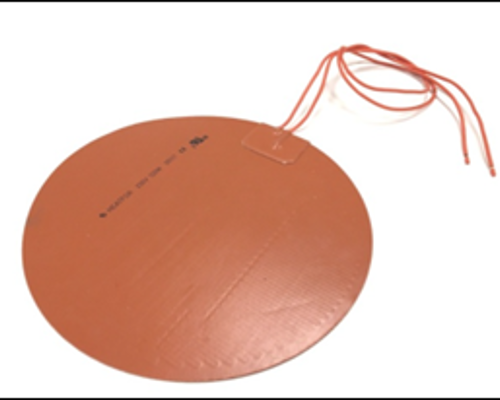

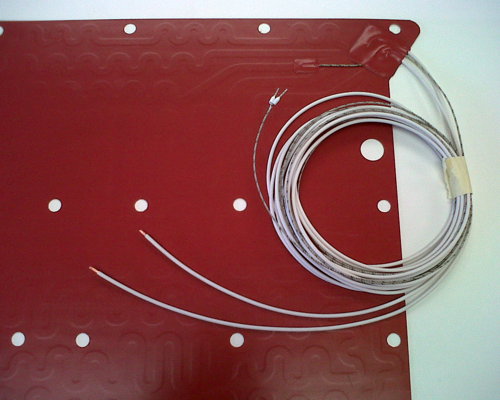

WHAT ARE ETCHED FOIL SILICONE HEATERS?

These heaters feature a precisely etched foil circuit encased within thin, flexible silicone rubber layers. This design ensures even heat distribution and fast warm-up times. The foil is crafted through a chemical etching process, enabling intricate circuit patterns tailored to specific heating needs. Capable of sustained operation at 200°C (with brief peaks up to 230°C), these heaters excel in demanding conditions.

ADVANTAGES OF ETCHED FOIL SILICONE HEATERS

• Even Heating: The broad, flat foil design delivers uniform heat across the surface, eliminating hot spots and ensuring consistent thermal output.

• High Power Output: Compared to traditional wire-wound heaters, etched foil heaters provide greater watt density, enabling quick heating and efficient energy use for high-demand applications.

• Flexible and Adaptable: Their slim, lightweight profile (as thin as 0.15mm) allows them to conform to curved or irregular surfaces, ideal for applications in industries like aerospace, medical, and food processing.

• Tailored Precision: The etching process supports complex heat patterns and multi-zone wattage configurations for precise temperature control.

• Robust and Reliable: Silicone rubber provides excellent insulation, moisture resistance, and chemical durability, ensuring long-term performance in tough environments.

• Energy Savings: When externally applied to surfaces like tanks, these heaters optimize power usage through uniform heat transfer.

• Certified Quality: Compliant with EEC Low Voltage and EMC Directives, our heaters are CE marked, with UL certification available for added confidence.

BESPOKE DESIGN TO MEET YOUR NEEDS

Clarian UK specialises in custom etched foil silicone heaters designed to your exact specifications. Using state-of-the-art tools, we offer:

• Custom Shapes and Sizes: From simple to complex geometries, we craft heaters to fit any surface or application.

• Power and Voltage Options: Tailored to meet your specific energy requirements for optimal efficiency.

• Integrated Controls: Add thermostats, PT100 sensors, Thermocouple type J/K probes, or thermal fuses for precise temperature regulation.

• Mounting Solutions: Choose from self-adhesive, or mechanical options like straps, hooks, eyelets, or Velcro for secure installation.

Applications

• Aerospace and satellite technology

• Medical and diagnostic equipment

• Food service and Bain Marie systems

• Anti-condensation for display units

• Industrial pipe curing and tank heating

• Many more

WHY CLARIAN UK?

As the exclusive UK partner of Heatfor SRL, a trusted global manufacturer, Clarian UK blends expertise with innovative design to deliver high-quality, cost-competitive heating solutions. Our dedication to rapid delivery and custom engineering guarantees your project’s success.
