Thick Film Heating Elements
Thick Film Heating Elements
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.
Thick Film Heating Elements
SKU: TFE

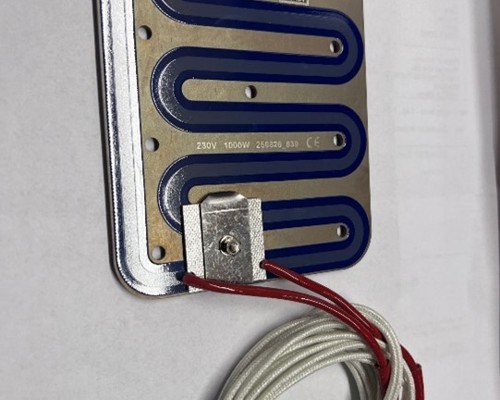

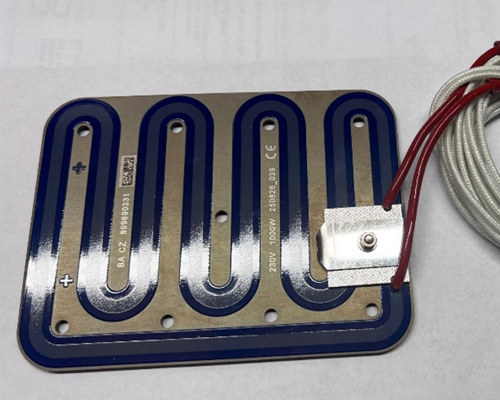

Introduction to Thick Film Heating Elements
Thick film heating elements represent a versatile and efficient solution for precise thermal management across a wide range of industries. Manufactured using advanced screen-printing technology on durable stainless-steel substrates, these heaters consist of multiple layers, including insulation, resistive paste, and protective coatings, that are carefully dried and fired to ensure reliability and performance. Ideal for contact heating of flat surfaces or indirect heating through vessels, they operate at standard voltages up to 400V and deliver high surface power densities, making them a go-to choice for applications demanding rapid heat-up times and energy efficiency. Whether in large-scale production or custom single-piece designs, Clarian UK's thick film heaters are engineered to meet diverse needs.
Advantages of Thick Film Heating Elements
Clarian UK's thick film heating elements offer numerous benefits over traditional heating methods, combining innovation with practicality:
Superior Heat Transfer and Efficiency: The flat sheet design ensures better contact with surfaces compared to tubular elements, resulting in improved heat distribution and efficiencies ranging from 70-95% depending on the application.
Rapid Temperature Response: With quick rise times and low thermal capacity, these elements minimize energy consumption and temperature fluctuations, leading to significant cost savings.
High Power Density: Capable of handling surface loads up to tens of W/cm², they provide powerful heating in compact spaces without compromising safety.
Ease of Maintenance and Assembly: Simple installation and removal reduce downtime and labour costs. There's no need to drain vessels during servicing, and the smooth inner surfaces are easy to clean.
Durability and Versatility: Built on robust materials like AISI 430 or 304 stainless steel, they resist corrosion and are suitable for aggressive liquids. The inherent PTC effect (positive temperature coefficient) enhances safety by reducing power as temperatures rise.
Customisability: Tailored designs allow for integration of controls, sensors, and specific shapes, ensuring optimal performance for unique requirements.
These advantages make thick film heaters a reliable, energy-efficient alternative for modern thermal applications.
Uses and Applications
Clarian UK's thick film heating elements are deployed in a variety of sectors, delivering consistent performance in both everyday and specialized environments. Key applications include:
Household Appliances: Used in kettles, coffee machines, and other devices for fast, even heating.
Industrial and Manufacturing: Ideal for heating vessels, storage tanks, production lines, and machine parts, including air and oil baths.
Food and Beverage (Gastro-Facilities): Employed in mini-breweries, round-bottom vessels, and equipment requiring precise temperature control to prevent burning or uneven heating.
Medical and Laboratory Equipment: Provide stable heating for devices handling sensitive materials or aggressive liquids.
Automotive and Transport: Integrated into railway systems and vehicles for reliable thermal management.
Other Specialized Uses: From waxing irons to liquid baths and custom setups with band heaters, these elements adapt to diverse needs like heating flowing liquids in tubular formats.
