ADVANTAGES OF POLYESTER FLEXIBLE HEATING ELEMENTS

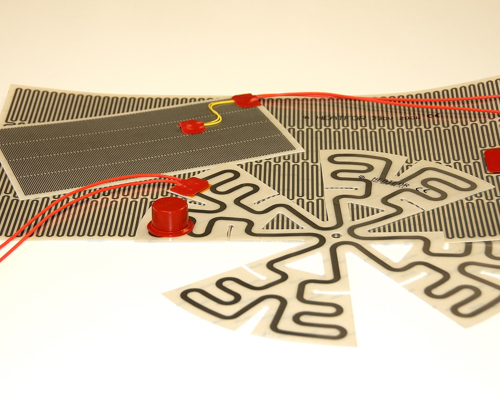

Polyester flexible heating elements (especially those using etched foil technology) offer several practical advantages, making them a smart choice for many low-to-moderate temperature applications.

They're extremely thin and lightweight, often just a fraction of a millimetre thick, which lets them conform easily to curved, irregular, or flat surfaces—whether plastic, metal, or other materials—without adding much bulk or weight. This is particularly helpful in space-constrained designs or where minimising mass matters.

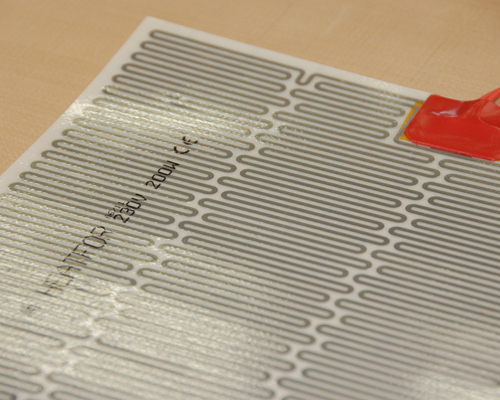

They deliver rapid warm-up times and very uniform heat distribution across the entire surface. The etched foil design creates a large contact area with precise, repeatable patterns (including complex shapes or varying watt densities in different zones), which helps eliminate hot spots, reduces uneven expansion, and makes the heating more efficient and consistent.

This even heating also translates to better energy efficiency—they often run at lower wattages while still achieving the desired temperature quickly, which can save power and extend the heater's lifespan.

They're highly customisable: manufacturers can tailor the exact shape, size, voltage, power output, and even specific heat zones to match unique requirements, opening the door to a wide variety of uses—from consumer electronics and appliances to medical devices, food warming, or de-icing components.

The polyester insulation and strong adhesive options provide reliable bonding to surfaces (like steel or plastics) and support continuous operation up to around 95–105°C (with some variants rated higher for short periods), while keeping costs relatively low compared to more extreme-temperature alternatives like silicone or polyimide heaters.

BESPOKE DESIGN TO MEET YOUR NEEDS

Possibility to customize shape, dimensions, voltage , power and configuration of the element;

• Extremely thin element

• Uniform surface heating distribution

• Possibility to get different specific power on the same element

• Easy to fix by adhesive film

• Possibility to control the temperature by a temperature control on the heater like thermostat, PTl00, J/K probes, thermo fuses etc.

• Heating loss reduction

• Voltage range from l to 400V

• Possibility to have double voltage supply llS-230V on the same element

WHY CLARIAN UK?

As the exclusive UK partner of Heatfor SRL, a trusted global manufacturer, Clarian UK blends expertise with innovative design to deliver high-quality, cost-competitive heating solutions. Our dedication to rapid delivery and custom engineering guarantees your project’s success.
