R1300 Universal Controller
R1300 Universal Controller
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.
R1300 Universal Controller
SKU: R1300
The R1300 is the universal controller for custom applications. It has continuous inputs and outputs, is available as a 3-point step controller and can be expanded with data interfaces.

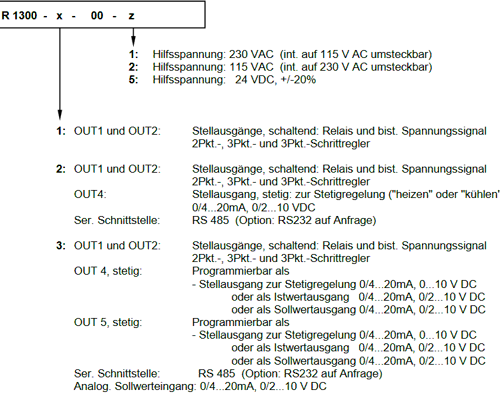

| DESIGNS AVAILABLE: | 2/3-point controller, 3-point step controller |
| INPUTS: | PT 100 | TC Analogue setpoint pre-setting (0 ... 10 V DC, 0/4 ... 20 mA) |
| OUTPUT: | Relay | 0/18 VDC Analogue actual value output (0 ... 10 V DC, 0/4 ... 20 mA) |
| AUXILIARY VOLTAGE: | 230 VAC | 115 VAC | 24 VAC | 24 VDC |
| OPTIONS: | Customer-specified versions possible |
| DIMENSIONS: | 96x96x122 mm, control panel installation |
| DATA INTERFACES: | RS-485, optional: RS-232 |
