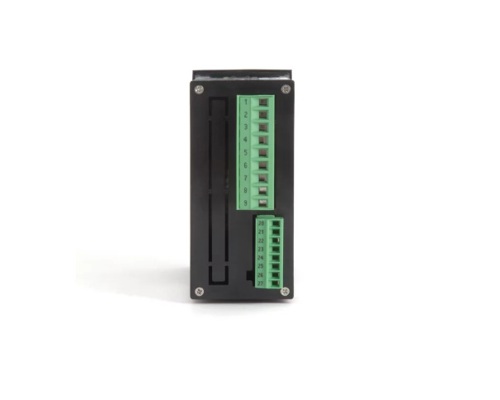

R1140 Modular Temperature Controller
R1140 Modular Temperature Controller
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.
R1140 Modular Temperature Controller
SKU: R1140
The R1140 is a modular temperature controller with numerous configuration and expansion options, e.g., as 2/3-point controller, continuous controller and, equipped with field bus interfaces, like a data professional.

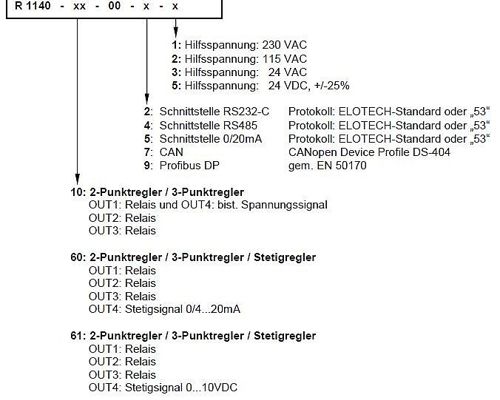

| DESIGNS AVAILABLE: | 2/3-point controller, 3-point step controller, 2/3-point controller with interface |
| INPUTS: | PT 100, TC |
| OUTPUT: | Relay | 0/18 VDC |
| AUXILIARY VOLTAGE: | 230 VAC | 24 VAC | 24 VDC |
| OPTIONS: | Analogue actual value output Customer-specified versions possible. |
| DIMENSIONS: | 48x96x122 mm, control panel installation. |
| DATA INTERFACES: | Profibus, RS-232, RS-485, CAN Open |
