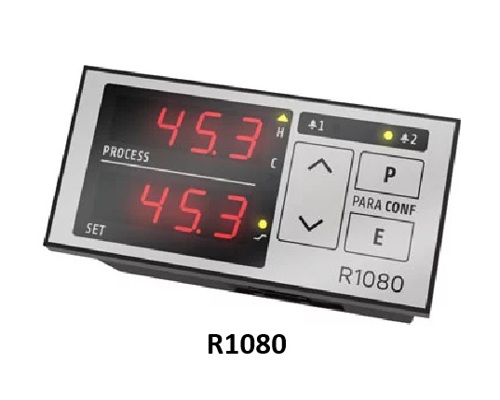

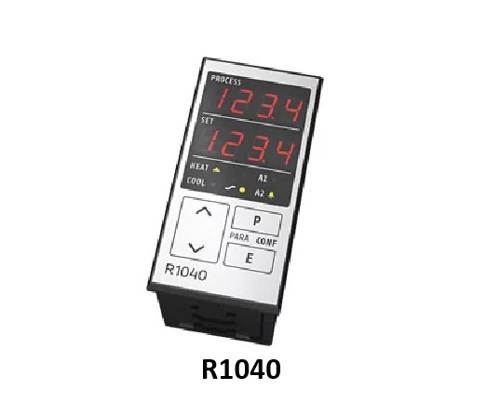

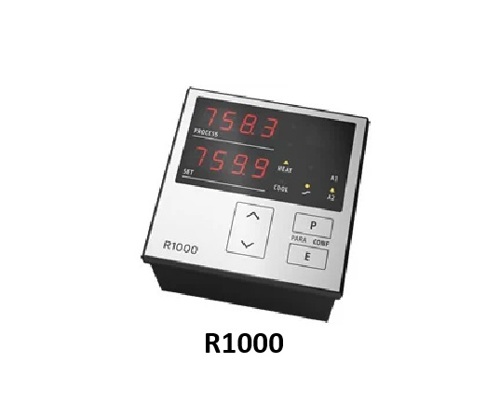

R1000, R1040 and R1080 1-Zone Temperature Controllers
SKU: R10X0
The R1000, R1040 and R1080 1-zone temperature controllers are equipped with a new operating concept that guides you clearly and comfortably through the configuration process with an extended range of functions. In control operation, LEDs signal the most important activities. Setpoint and actual values are easily read off the highly-illuminated four-digit display, even at greater distances. Both appliances have digital and relay outputs, so they can be used for a wide range of different applications.
R1000, R1040 and R1080 differ in terms of their housing format, but identical in all other product features.
| DESIGNS AVAILABLE: | 2-point controller, 3-point controller and 3-point step controller |
| INPUTS: | PT 100, TC |
| OUTPUT: | Relay or 0/18 VDC (programmable) |
| AUXILIARY VOLTAGE: | 230 VAC - 24 VDC |
| DIMENSIONS: | 96x96x60 mm, control panel installation (R1000) - 48x96x60 mm, control panel installation (R1040) |
| DATA INTERFACES: | Service interface |
