R1120 PID controller
R1120 PID controller
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.
R1120 PID controller
SKU: R1120

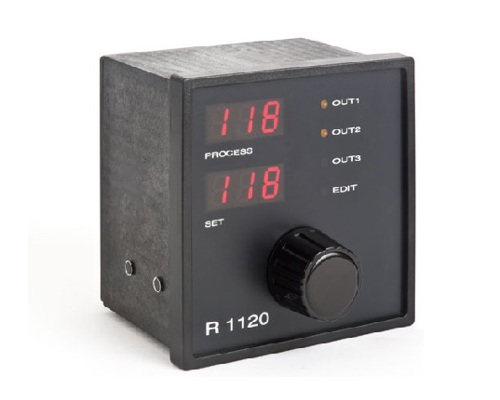

The R1120 PID controller features a sophisticated control function. All essential settings are shown on the two 7-segment displays and are easily adjusted using the rotary switch. The 2-point or 3-point controller is also available as a variant with 3-point step control. Further feature. With an optional seal the housing front can achieve a protection class of IP54. Further characteristics: Self-optimising

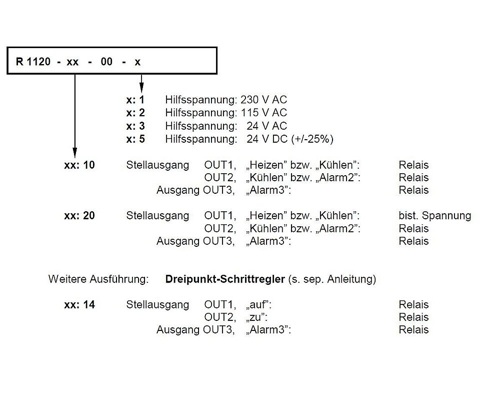

| DESIGNS AVAILABLE: | 2-point controller, 3-point controller and 3-point step controller |
| INPUTS: | PT 100, Thermocouple |
| OUTPUT: | 2 relay outputs | 1 alarm relay |
| AUXILIARY VOLTAGE: | 230 VAC | 115 VAC | 24 VAC | 24 VDC |
| DIMENSIONS: | 96 x 96 x 67 mm |
| DATA INTERFACES: | Service interface |
