R2400 - Multi-zone temperature controller for 4 - 8 zones
R2400 - Multi-zone temperature controller for 4 - 8 zones
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.
R2400 - Multi-zone temperature controller for 4 - 8 zones
SKU: R2400
Straightforward and compact with service interface.
Straightforward and compact temperature controller for 4-8 control zones. Menu-controlled user navigation via LCD display. Can be supplied with optional data interfaces RS 232, RS 485, CAN Profibus and service interface.

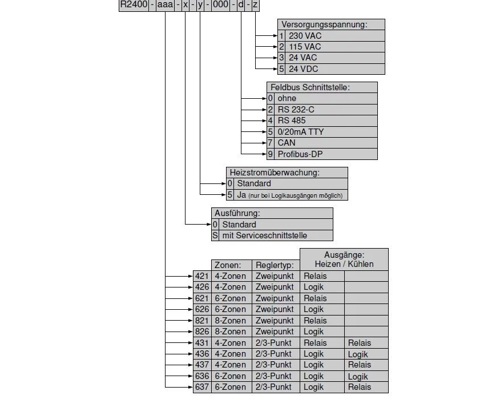

| DESIGNS AVAILABLE: | 4 | 6 | 8 zone 2-point controller, 4 | 6 zone 3-point controller, Integrated service interface for straightforward configuration and graphical display. |
| SELF OPTIMISING: | Yes |
| INPUTS: | PT 100 | TC |
| OUTPUT: | Relay | 0/18 VDC |
| AUXILIARY VOLTAGE: | 230 VAC | 115 VAC | 24 VAC | 24 VDC |
| OPTIONS: | Heating circuit monitoring | Interface, serial RS 232 (Modbus RTU, Elotech Std protocol) | Interface, serial RS 485 (Modbus RTU, Elotech Std protocol) | Serial interface TTY (Modbus RTU, Elotech Std protocol) CAN | Open interface | Interface Profibus DP | Custom versions to customer preferences |
| DIMENSIONS: | 96 x 96 x 122 mm, control panel installation. |
