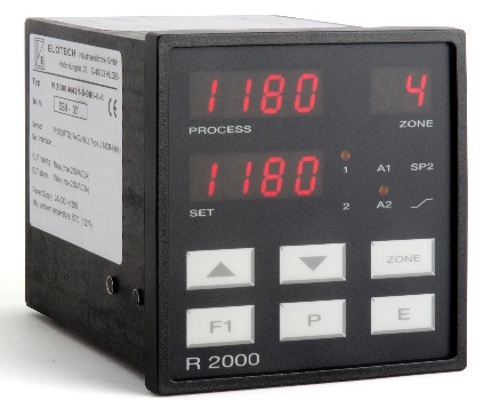

R2000 - Multi-Zone Temperature Controller for 4 - 10 Zones
R2000 - Multi-Zone Temperature Controller for 4 - 10 Zones
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.
R2000 - Multi-Zone Temperature Controller for 4 - 10 Zones
SKU: R2000
Versatile multi-zone temperature controller. Cost effective and flexible in terms of equipment. Can be supplied with optional data interfaces RS 232, RS 485, CAN and Profibus.

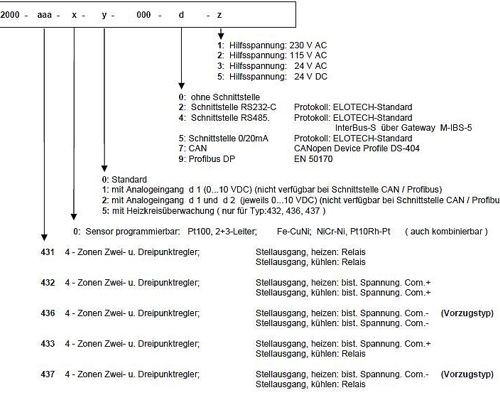

| DESIGNS AVAILABLE: | 4/6/8 zones 2-point controller | 4 zone 3-point controller | 6 zone 2/3-point controller | 10 zone 2-point controller |
| SELF OPTIMISING: | Yes |
| INPUTS: | PT 100 | TC | max. 2x analogue 0-10V |
| OUTPUT: | Relay | 0/18 VDC |
| AUXILIARY VOLTAGE: | 230 VAC | 115 VAC | 24 VAC | 24 VDC |
| OPTIONS: | Heating circuit monitoring | Serial interface RS-232 | Serial interface RS-485 | Interface CAN Open | Interface Profibus DP | Interface 0/20 mA | Custom versions to customer preferences |
| DIMENSIONS: | 96 x 96 x 122 mm, control panel installation. |
| DATA INTERFACES: | Service interface |
