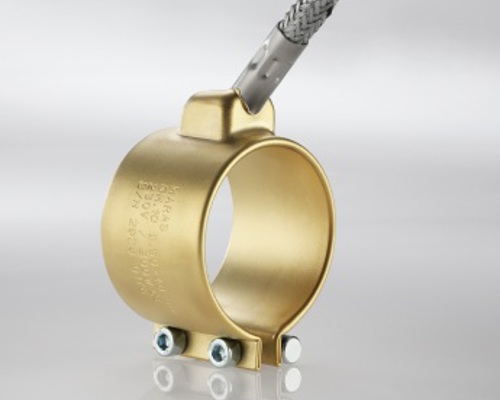

Nozzle Band Heater
SKU: GM.10
The Nozzle Band Heaters are manufactured for use in injection moulding machines in the plastic processing industry. They are plastic resistant which allows high life expectancy and guarantees the required temperature on the nozzle.
For high melting temperature (PC, glass-fibre filled) and corrosive materials (PVC) we recommend the use of heaters made in stainless steel GM.11. For temperatures above 350°C (PTFE/PEEK) we recommend to use type GM.62 heaters. All heaters can have the option equipped with integrated thermocouple.
Nozzle heaters are also suitable for heating hot runners, in the packaging industry, for filling various liquids (food industry) and for machines for special purposes.
| Standard Voltage: | 230V (others on request) |
| Sheath material: | Brass |
| Max. Watt density: | 4,5 W/cmm2 |
| Working temperature: | up to 280°C |
| Insulation material: | Micanite |
| Heating conductor: | Nickel-Chrome 80/20 |
| Wall thickness: | 3.5 mm |
| Diameter: | From 25 to 110 mm |
| Width: | 20, 25, 30, 35, 40, 45, 50, 55, 60mm |

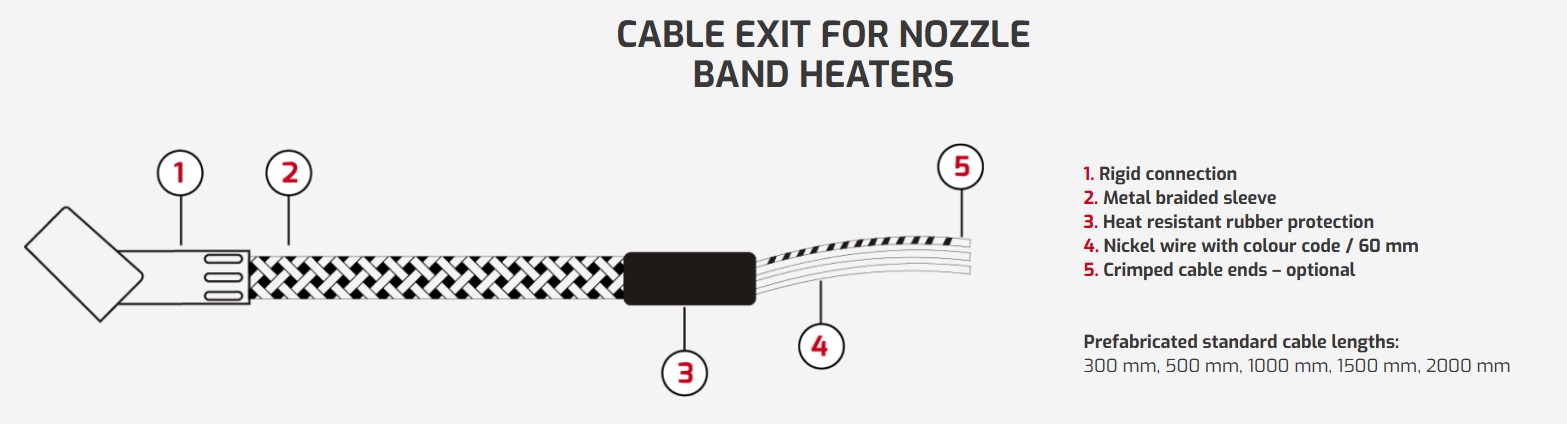

| Connection cable: | Temp. resistant cable with steel mesh up to 400°C |
| Connection box: | A |

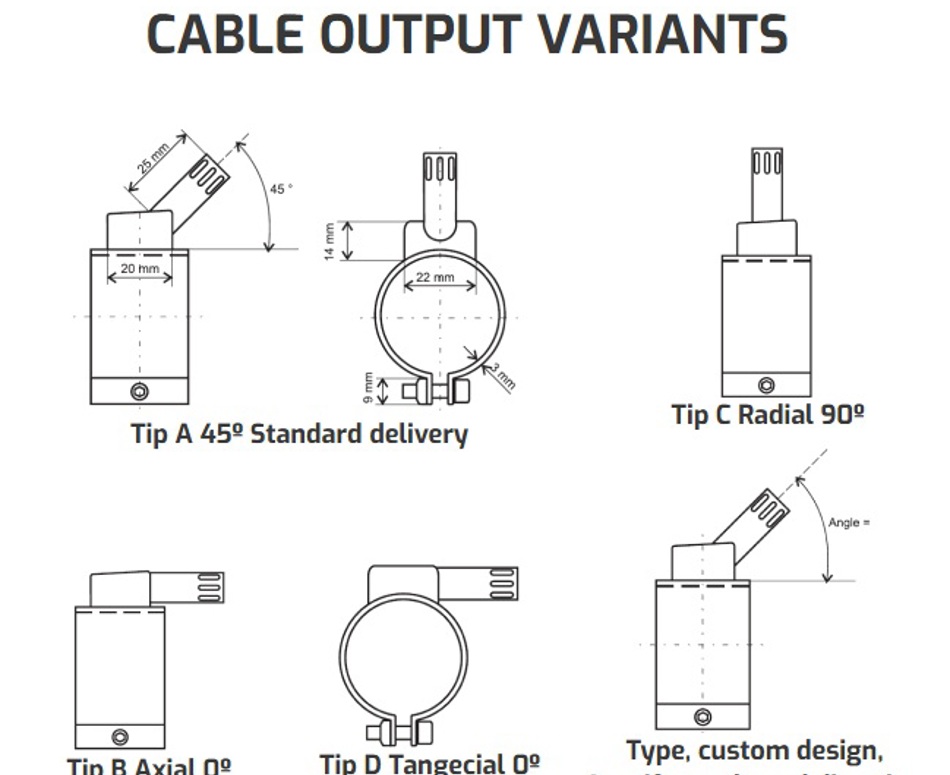

| Cable direction: | Axial, Tangential, Radial. |
| Connection angle: | 0°/ 30°/ 45° / 90° |

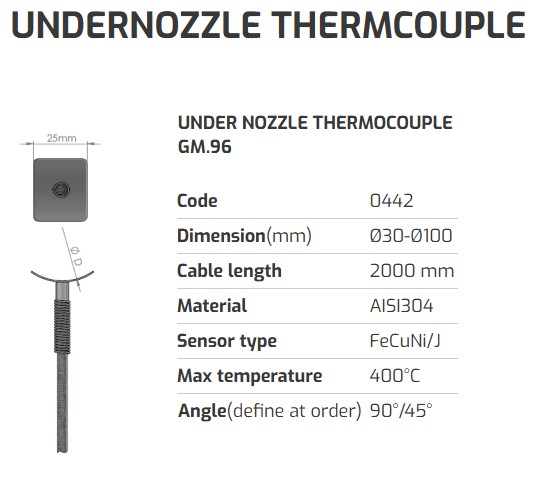

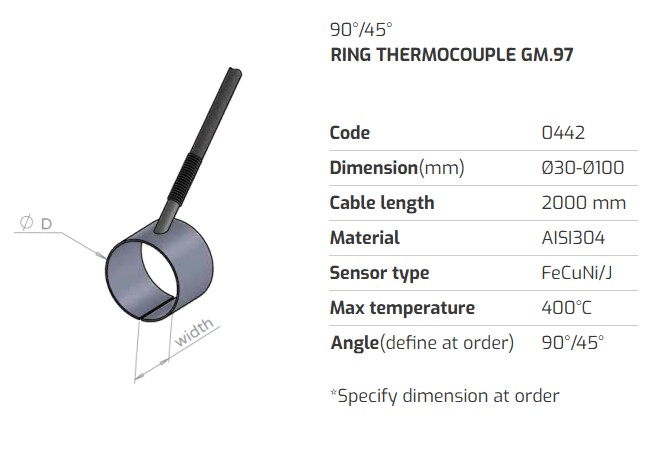

| Thermocouple: | Optional integrated type J / K / PT100 |
