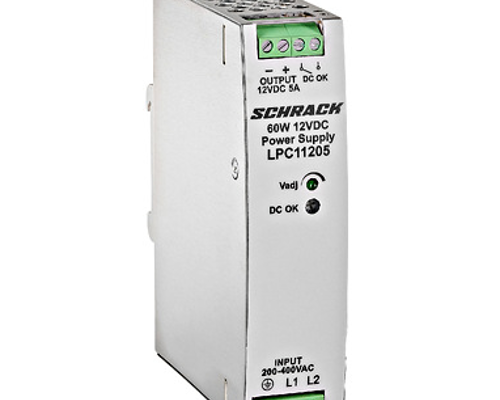

Single-phase Power Supply pulsing, 230VAC/12VDC, 5A at 50°C CUBICO
Single-phase Power Supply pulsing, 230VAC/12VDC, 5A at 50°C CUBICO
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.
Single-phase Power Supply pulsing, 230VAC/12VDC, 5A at 50°C CUBICO
SKU: LPC11205
Electronic power supply, housing for DIN rail mounting
Net length: 32 mm
Net width: 100.5 mm
Net height: 125 mm
Net weight: 0.45 KG
Power loss: 6.00W
Min. ambient temperature: -25°C
Max. ambient temperature: 70°C
Input voltage AC: 180-550V
Input voltage DC: 254-780V
Current consumption: 0.4 A (400VAC) / 0.8 A (230VAC)
Inrush current: 50 A (400VAC)
Fuse size: External fuse on AC line: MCB: C-4 A / Fuse: T 4 A, Internal protective fuse: T 4 A
Output voltage DC: 12V
Output current: 10A
Contacts: dry contact, max. 1 A
Efficiency (depending on input voltage): 88% (230VAC) / 88% (400VAC)
Power loss (depending on input voltage): 9 W (230VAC) / 9 W (400VAC)
Operating temperature: -30°C…+70°C (derating -3 W/°C >60°C)
IP Rating: IP20
Mounting Depth: 11,50mm
