Mica Flat Heater with Pressure Plate - GM.553
SKU: GM.553
GM.55 flat heaters are the ideal choice for applications requiring efficient, even heat distribution. Commonly used for heating moulds, tools, and melt flow channels, these heaters provide rapid heating, exceptional durability, and customizable designs to meet the demands of industrial environments.
GM.55 flat heaters are perfect in dry conditions, they are not suitable for wet environments. For such applications, we recommend our GM.75 heater model, specifically designed to deliver reliable performance in moisture-prone settings.
Application areas:
Heating of moulds, tools, and melt flow channels to ensure optimal temperature control and efficient material processing.
SELECTION:
Selecting the right flat heater is essential for ensuring optimal performance, energy efficiency, and the long-term reliability of your heating system.
Here are key factors to consider when selecting a flat heater:
Temperature Range: Determine the maximum operating temperatures required for your process.
Watt Density: Assess the power requirements to achieve the desired heating levels efficiently. Higher watt densities are suitable for faster heating and more demanding applications.
Mounting of heater: Mounting heater properly to the desired surface is essential for optimal performance. Ensure there are enough fixing holes and a pressure plate to prevent movement and ensure stability. This ensures efficient heat distribution, energy savings, and longer-lasting performance.
| Voltages: | 230, 400V or other |
| Sheath material: | AISI 0430 / Aluminised steel |
| Isolation Material: | Micanite |
| Max Watt density: | 4 W/cmm2 |
| Operating temperature: | max 350°C, for higher temp. use GM.65 |
| Heating conductor: | Nickel-Chrome 80/20 |
| Wall thickness: | 4 mm + (3,4,5,6,8,10 mm) |
| Width: | 20-1200 mm |
| Length: | 20-1500 mm |
| Connection: | Variety of options, see below |
| Connection cable: | Temp. resistant cable with steel mesh up to 400°C |
| Integrated Thermocouple: | Type: J, K, PT100 |

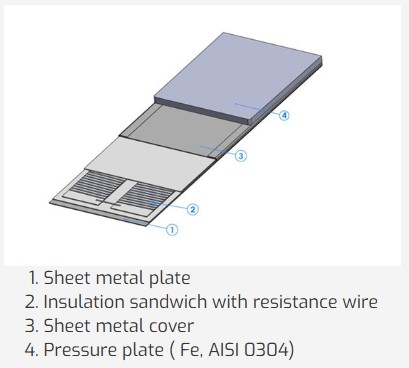

CONSTRUCTION OF MICANITE BAND HEATER GM.50
The GM.55 heaters can be constructed in three ways to suit your needs:
GM.551 NORMAL Closed with Sheet Metal - Standard construction for versatile applications.
GM.552 MIKA ONLY - Features mica insulation, perfect for installations with limited space.
GM.553 NORMAL with Pressure Plate – Pressure plate(Fe) available in thicknesses of 3, 4, 5, 6, 8, or 10 mm for enhanced durability.
All GM.55 heating elements are equipped with heating wire and high-quality MICANITE insulation for superior heat resistance and efficiency. Choose the right configuration for your application to maximize performance and reliability.
AXIAL CONNECTION BOXES:
RADIAL CONNECTION BOXES:
TANGENTIAL CONNECTION BOXES:
WHY CLARIAN UK?
As the exclusive UK partner of Grelci Maras, a trusted global manufacturer, Clarian UK blends expertise with innovative design to deliver high-quality, cost-competitive heating solutions. Our dedication to rapid delivery and custom engineering guarantees your project’s success.
