Immersion Heater
SKU: EHK

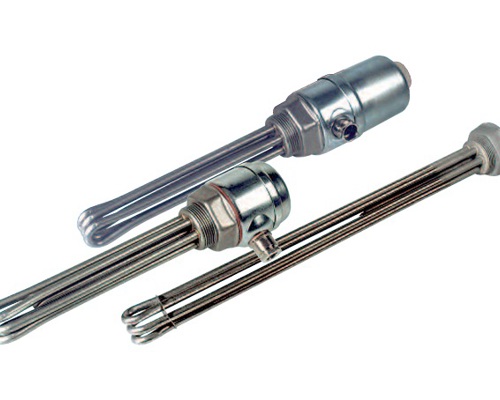

Electrical heating element consisting of 3 u-shaped tubular heaters, which are brazed or welded onto a threaded nipple G 11/2 and can be supplied with a thermostat or/and a temperature limiter.
WHAT ARE IMMERSION HEATER TYPE EHK?
Immersion heaters are used for the heating of liquid and gaseous media e.g. the provision of hot water, boilers, coffee machines, cleaning and degreasing baths, oil heaters, air heaters and heat regenerators.
ADVANTAGES OF IMMERSION HEATER TYPE EHK?
Türk + Hillinger immersion heaters of type EHK offer reliable and efficient heating for a wide range of liquid and gaseous media, such as water in boilers, hot water systems, oils, and cleaning baths. Their robust construction, featuring three U-shaped tubular elements brazed or welded onto a G 1½" threaded nipple, provides excellent durability and high surface loading of up to 25 W/cm², depending on the medium. These heaters support high temperatures of up to 850 °C and immersion depths of up to 2,200 mm, making them suitable for demanding industrial applications. They deliver efficient heat transfer directly to the medium, with options for 3-phase 400 V or parallel 230 V connections, promoting energy efficiency and consistent performance. Additional benefits include straightforward installation via the screw-in design and long service life thanks to high-quality materials like CrNi-steel.
BESPOKE DESIGN TO MEET YOUR NEEDS:
Türk + Hillinger specialises in tailor-made heating solutions, and their EHK immersion heaters exemplify this bespoke approach by being fully customisable to meet individual customer requirements. These heaters can be precisely configured in terms of power rating, immersion length, materials, and surface loading to suit specific applications and installation constraints. A key feature is the ability to purchase them with thermostats and/or temperature limiters already fitted and integrated, complete with protective tubes for safe and accurate temperature control. This factory-fitted option simplifies installation, ensures compliance with safety standards, and provides reliable over-temperature protection from the outset. Customers benefit from expert German engineering support to develop the ideal solution for their needs, whether for standard or highly specialised uses.
| SURFACE LOADING: | Depending on the medium to be heated, up to 25 W/cm². |
| TEMPERATURE RESISTANCE: | up to max. 850°C |
| IMMERSION DEPTH: | max. 2200mm |
| POWER SUPPLY: | Suitable for connection to 3-phase 400V or parallel connection 230V. |
