HPL High Performance Cartridge Heaters
HPL High Performance Cartridge Heaters
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.
HPL High Performance Cartridge Heaters
SKU: HLP

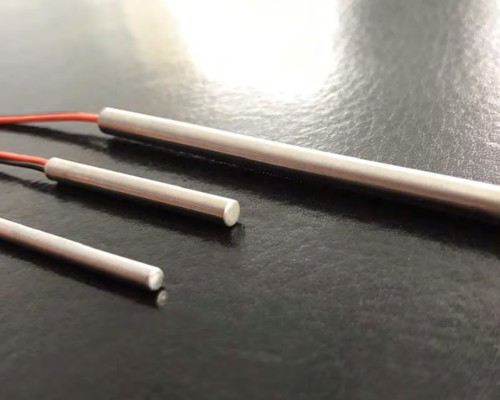

Metal-sheathed cartridge heater with ground sheath. The special construction allows an extremely high surface loading, i.e. maximum power in the smallest possible space. Cartridge heaters are normally inserted into a metal block due to there high surface loading.
Our cartridge heaters can be made with distributed wattage allowing greater heater output at the ends as opposed to the middle. They can also be made with low(24v) and high voltages as well as dual voltages and incorporate temperature sensors. We can also supply cartridge heaters with self regulating ptc elements if required and in very small diameters down to 2.8mm.

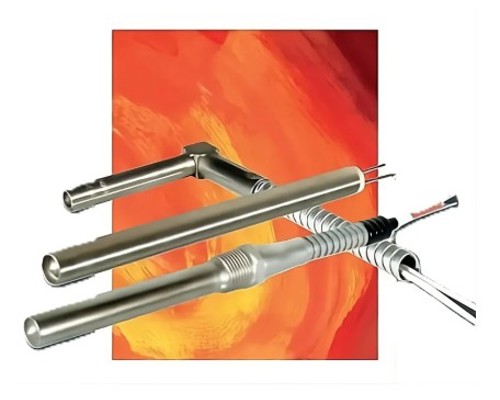

We can also supply very long cartridge heaters up to 6 metres in length and heaters with special mechanical fittings and connectors.
WHAT ARE HPL HIGH PERFORMANCE CARTRIDGE HEATERS?
HPL high performance cartridge heaters are compact, cylindrical heating devices engineered for demanding industrial uses, such as heating moulds, dies, platens, or packaging equipment. They consist of a durable metal sheath enclosing a tightly wound resistive heating coil.
ADVANTAGES OF HPL HIGH PERFORMANCE CARTRIDGE HEATERS
What sets HPL models apart is their optimised design for superior power density—delivering intense heat in a small space—while withstanding extreme temperatures and providing uniform heating distribution to prevent hotspots or failures under heavy load.
These heaters excel in scenarios requiring quick response times and high reliability, with capabilities like surface loads up to around 50 W/cm² and maximum operating temperatures reaching 750°C or higher in some variants. They're commonly available in various diameters (from about 3mm to 32mm) and lengths, with customisable voltage ratings up to 1000V, making them versatile for precision applications in manufacturing, plastics processing, or medical device production. Overall, they're a step up from standard cartridge heaters, focusing on enhanced compression, longevity, and performance in tight spaces.
BESPOKE DESIGN TO MEET YOUR NEEDS
Our HPL high-performance cartridge heaters from Türk + Hillinger GmbH can be fully customised to meet your specific requirements, ensuring optimal performance in even the most challenging applications.
From precise dimensions and wattage densities to specialised sheath materials, lead configurations, and integrated sensors, we work closely with you to design bespoke solutions that deliver superior heat transfer, durability, and efficiency.
This tailored approach guarantees a perfect fit for your equipment, reducing downtime and enhancing productivity across industries like medical devices, packaging, and aerospace.
WHY CLARIAN UK?
As the exclusive UK partner of Turk+Hillinger GmbH, a trusted global manufacturer, Clarian UK blends expertise with innovative design to deliver high-quality, cost-competitive heating solutions. Our dedication to rapid delivery and custom engineering guarantees your project’s success.
| VOLTAGE: | up to 1000V |
| SURFACE LOADING: | approx. 3–50 W/cm² |
| TEMPERATURE: | approx. 750°C max. |
| OPERATING DIAMETER | 2.8mm - 32mm |
| CONNECTIONS: | Solid wire or flexible leads. Custom-made lengths. |
