Constant Power Cable
Constant Power Cable
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.

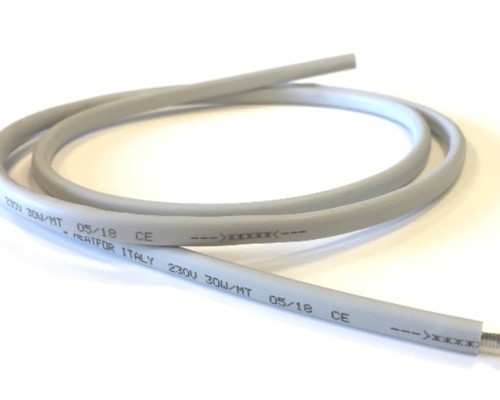

Constant Power Cable
SKU: 010
This type of heating cable is ideal for applications that demand consistent power output throughout its entire length, along with excellent flexibility and robust resistance to extreme temperature fluctuations ranging from -50°C to +200°C.
The manufacturing process for this cable enables it to be cut to various lengths in line with the contact intervals, which are typically spaced 50 cm apart.
It comprises two insulated silicone conductors that are alternately exposed at 50 cm points. A resistive wire is wound around them to form a parallel electrical link between the conductors. The outer silicone sheath, designed to resist tearing, ensures superior flexibility, durability, and strong electrical insulation.
To make an electrical connection, strip away the outer insulation, remove the resistive wire, and separate the two conductors. This procedure must be carried out at both ends of the heating cable, with particular care at the end opposite the connection point to prevent any risk of short-circuiting.
WHAT IS CONSTANT POWER CABLE?
At Clarian UK, we proudly supply constant power heating cables as the exclusive UK agent for Heatfor SRL, a renowned Italian manufacturer known for high-quality industrial heating solutions. These cables are engineered to deliver reliable, consistent performance across a wide range of demanding applications.
Constant power heating cables provide uniform power output along their entire length, making them ideal for scenarios requiring steady heat distribution, exceptional flexibility, and resilience to extreme temperatures from -50°C to +200°C. Unlike self-regulating cables, their wattage remains constant regardless of ambient conditions, ensuring predictable and efficient heating. Supplied on reels for custom cutting, these cables can be tailored to specific lengths based on contact points typically spaced 50 cm apart, offering versatility for various installations.
ADVANTAGES OF HEATING WIRE
Installation is straightforward: Strip the outer insulation, remove the resistive wire, and separate the conductors at both ends. Pay special attention to the non-connection end to prevent short circuits. Cables are supplied ready for customer termination, supporting parallel wiring for continued operation even if damaged. Always follow safety guidelines for electrical connections to ensure optimal performance and longevity.
As Heatfor SRL's trusted UK partner, Clarian UK offers these cables with expert support, competitive pricing, and rapid delivery to meet your thermal management requirements.
BESPOKE DESIGN TO MEET YOUR NEEDS
The cable features two insulated silicone conductors with alternating exposure points every 50 cm. A resistive wire is spirally wound around these conductors, creating a parallel electrical connection that enhances reliability—if one section fails, the rest continues to function. The outer silicone sheath is anti-tear, providing superior flexibility, mechanical strength, and excellent electrical insulation. Available in non-braided (dimensions: 6.5 x 4.5 mm, min. bending radius: 20 mm) and braided variants (diameter: 3.5 mm, min. bending radius: 15 mm), they suit diverse environments.
WHY CLARIAN UK?
As the exclusive UK partner of Heatfor SRL, a trusted global manufacturer, Clarian UK blends expertise with innovative design to deliver high-quality, cost-competitive heating solutions. Our dedication to rapid delivery and custom engineering guarantees your project’s success.
