Ceramic Flat Heater - GM.652
SKU: GM.652
The GM.65 flat heaters are the perfect solution for applications requiring efficient, even heat distribution at temperatures exceeding 350°C. Engineered for demanding industrial environments, they are commonly used for heating moulds, tools, and melt flow channels. These heaters deliver rapid heating, exceptional durability, and customizable designs, ensuring optimal performance in high-temperature applications.
GM.65 flat heaters are perfect in dry conditions, they are not suitable for wet environments. For such applications, we recommend our GM.76 heater model, specifically designed to deliver reliable performance in moisture-prone settings.
Application areas:
Heating of moulds, tools, and melt flow channels to ensure optimal temperature control and efficient material processing.
SELECTION
Selecting the right flat heater is essential for ensuring optimal performance, energy efficiency, and the long-term reliability of your heating system.
Here are key factors to consider when selecting a flat heater:
Temperature Range: Determine the maximum operating temperatures required for your process.
Watt Density: Assess the power requirements to achieve the desired heating levels efficiently. Higher watt densities are suitable for faster heating and more demanding applications.
Mounting of heater: Mounting heater properly to the desired surface is essential for optimal performance. Ensure there are enough fixing holes and a pressure plate to prevent movement and ensure stability. This ensures efficient heat distribution, energy savings, and longer-lasting performance.
CONSTRUCTION OF FLAT HEATERS GM.65
The GM.65 heaters can be constructed in three ways to suit your needs:
GM.651 NORMAL Closed with Sheet Metal - Standard construction for versatile applications.

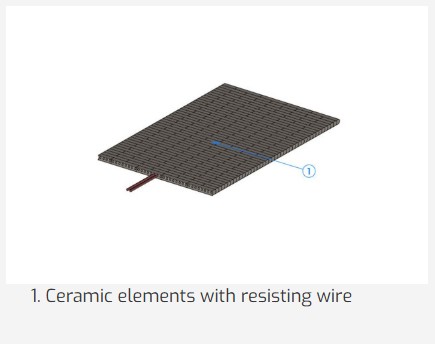

GM.652 CERAMIC ONLY - Features ceramic insulation, perfect for installations with limited space.
GM.653 NORMAL with Pressure Plate – Pressure plate(Fe) available in thicknesses of 3, 4, 5, 6, 8, or 10 mm for enhanced durability (welded).
All GM.65 heating elements are equipped with heating wire and high-quality Steatite insulation for superior heat resistance and efficiency. Choose the right configuration for your application to maximize performance and reliability.
| Voltages: | 230, 400V or other |
| Sheath material: | N/A |
| Isolation Material: | Steatite, silicate-ceramic. |
| Max Watt density: | 6,5 W/cmm2 |
| Operating temperature: | max 600°C* |
| Heating conductor: | Nickel-Chrome 80/20 |
| Wall thickness: | 10 mm |
| Width: | 30-1200 mm |
| Length: | 60-1500 mm |
| Connection: | Only wires |
| Connection cable: | Temp. resistant cable with steel mesh up to 400°C |
| Integrated Thermocouple: | Type: J, K |

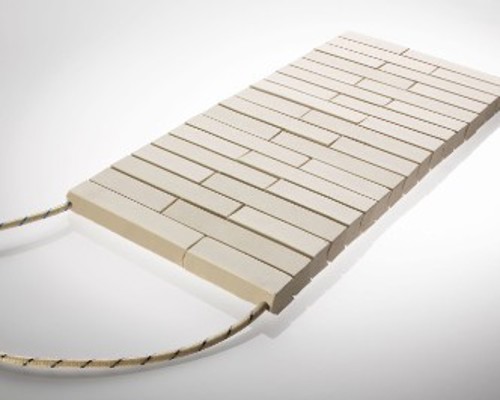

When to select GM.652 CERAM ONLY?
Use Ceramic Flat Heater GM.652 when operating temperatures range from 300°C to 600°C and space is limited, or when installation in an existing metal structure is required. This heater is designed for easy integration into confined spaces while maintaining high performance and efficiency.
AXIAL CONNECTION BOXES:
RADIAL CONNECTION BOXES:
TANGENTIAL CONNECTION BOXES:
