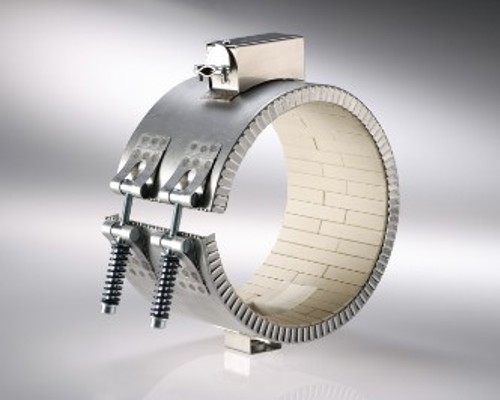

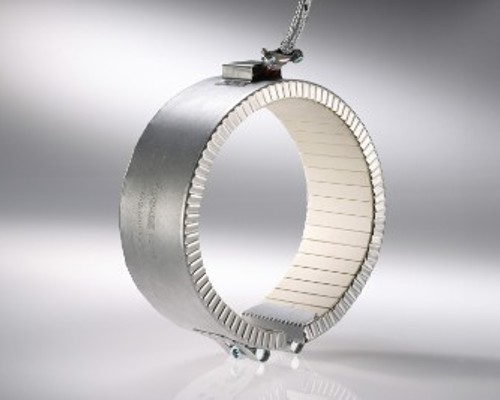

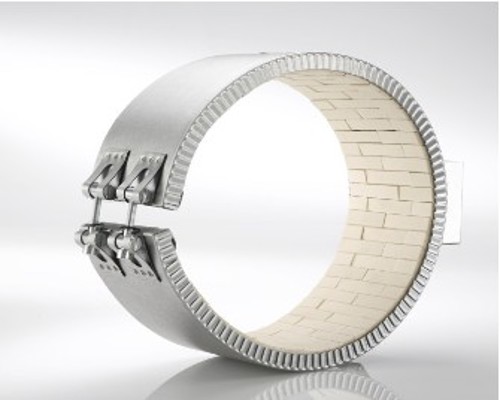

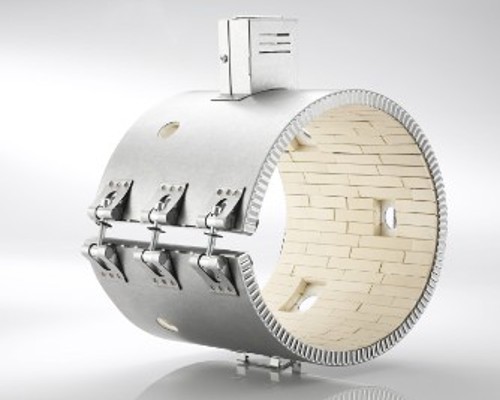

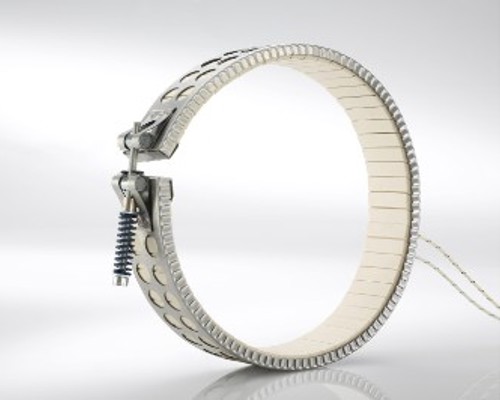

Ceramic Band Heaters GM.60
SKU: GM.60
Ceramic band heaters are widely used in various industries for their superior heating performance.
Designed for direct heating of cylindrical surfaces, they are commonly applied to machines like injection moulding, extrusion equipment, and pipe heating. Made from high-quality ceramic insulation, they ensure consistent heat distribution, reduce energy consumption, and enhance operational efficiency.
Ideal for high-temperature environments, ceramic band heaters are known for their durability and resistance to wear, providing long-lasting and reliable heating solutions for a range of industrial applications.
We also specialise in supplying ceramic band heaters for special applications, capable of withstanding temperatures up to 800°C, offering high-performance solutions for extreme heating needs.
SELECTION
Choosing the right band heater for your application is crucial to ensure optimal performance, energy efficiency, and longevity of your heating system.
Here are key factors to consider when selecting a heater band:
Temperature Range: Determine the maximum operating temperatures required for your process.
Watt Density: Assess the power requirements to achieve the desired heating levels efficiently. Higher watt densities are suitable for faster heating and more demanding applications.

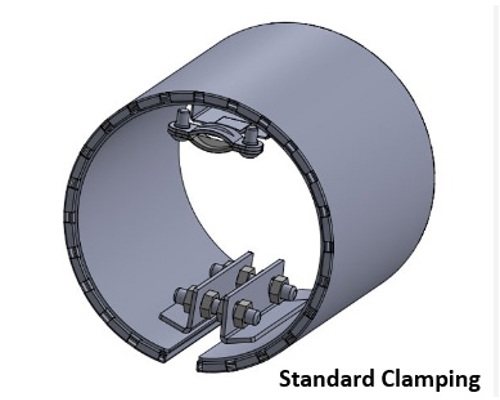

For applications requiring heating elements on surfaces with diameters larger than 400 mm, we recommend using multiple segments of heating elements connected together with clamps

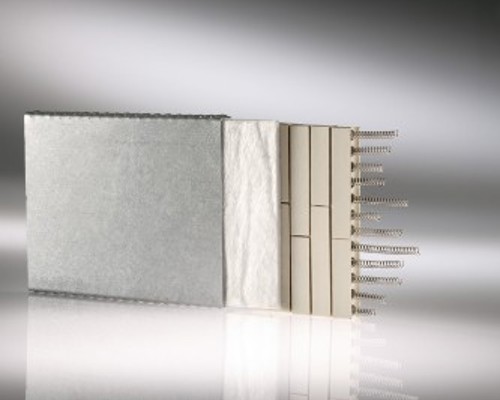

| Isolation Material: | Steatite element |
| Diameter: | From 60 mm |
| Width: | 20 to 600 mm |
| Max Watt density: | 8 W/cmm2 |
| Voltages: | 230, 400V or other |
| Operating temperature: | Up to 600°C |
| Sheath material: | Aluminised steel |
| Heating conductor: | Nickel-Chrome 80/20 |
| Connection cable: | Temp. resistant cable with steel mesh up to 400°C |
When to select Ceramic Band Heater GM.60
Select Ceramic when working temperature is between 350°C and 600°C and when you need more power density up to max 8 W/cm2. GM.60 heaters offers Uniform heat distribution and Long Operation life due to highly durable construction. Their ceramic insulation offers superior thermal retention, reducing heat loss and lowering energy consumption.
AXIAL CONNECTION BOXES:
RADIAL CONNECTION BOXES:
TANGENTIAL CONNECTION BOXES:
